18650 Rechargeable Battery 3.7 Volt 2300mAh for Bicycle Headlight

18650 Rechargeable Battery 3.7 Volt 2300mAh for Bicycle Headlight

Brand Name : TAC
Model Number : ICR18650 3.7V 2300mAh
Certification : UL,ROHS
Place of Origin : guangzhou
MOQ : 1000pcs
Price : usd1.5-3
Payment Terms : T/T L/C paypal
Supply Ability : 100000Piece/Month
Delivery Time : 1 month after T/T
Packaging Details : 50pcs per box, 10boxes per carton
Rated Capacity : 2300mAh
Nominal Voltage : 3.7V
OEM & ODM : Support
Packing : PVC
Environmental Compliance : ROHS, REACH
min capacity : 2200mah
warranty : 12 months
PO NO : PLIC0504
PVC color : black \ blue
Contact Now

18650 Rechargeable Battery 3.7 Volt 2300mAh for Bicycle Headlight


Quick Detail:


1. Nominal Voltage3.7V,Rated Capacity2300mAh.

2. Application:mounting of the outdoor lamp, Bicycle headlight.

3. Model:ICR18650 3.7V 2300mAh Cylindrical Rechargeable Battery for Bicycle headlight.

4. Higher energy density and lower weight than other rechargeable batteries.

5. Battery tested based on International Electronically Commission (IEC) standard to ensure capacity, quality and life time.

6. 3.7V 18650 size Cylindrical Li-Ion Cell with PCB and wire connector

7. With a long cycle life about 2000 times.

8. Other name: ICR18650/INR18650/INM18650.

9. Certification: UL,UN,ROHS.


Detail Specification for 18650 Rechargeable battery 3.7 Volt 2300mAh for Bicycle Headlight

No.ItemsSpecifications

Remark


1

Nominal Capacity


2300mAh

0.2C Standard discharge


2

Minimum Capacity


2250mAh
3

Nominal Voltage


3.7V

Mean Operation Voltage


4

Delivery voltage


3.70~3.9V

Within 10 days from Factory

5

Charge Voltage


4.2V±0.03V

By standard charge method


6

Standard charging method


0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C
7

Charge current


0.2C460mA
0.5C1050mA
8

Standard discharging method


0.2C constant current discharge to3.0V,
9

Cell Internal Impedance


≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge



Drawing for 18650 Rechargeable Battery 3.7 Volt 2300mAh for Bicycle Headlight


Packing And Delivery

Standard package follow UN38.3 rules,

The battery pack was packed by sponge bag one by one

5 pcs for one inner box and 8 box for one carton, the total weight less than 6kgs

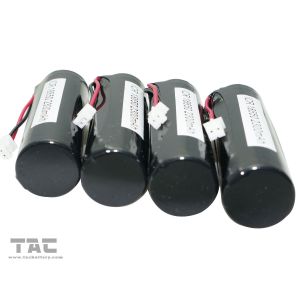

Picture for Li-Ion ICR18650 3.7V 2300mAh Cylindrical Rechargeable Battery for Bicycle headlight



Other Similar Model for Lithium-ion Battery Pack

Period of Warranty

The period of warranty is one year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.


Storage of the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge
.


Certification:

UN38.3 for this Model
